形式
solid
特点
wetted part: no
包装
pack of 12 strips
制造商/商品名称
Cytiva 17-6001-15
颜色
Colorless
溶解性
cold water: soluble (Insoluble in cold and hot water)
运输
dry ice
储存温度
−20°C
相关类别
一般描述

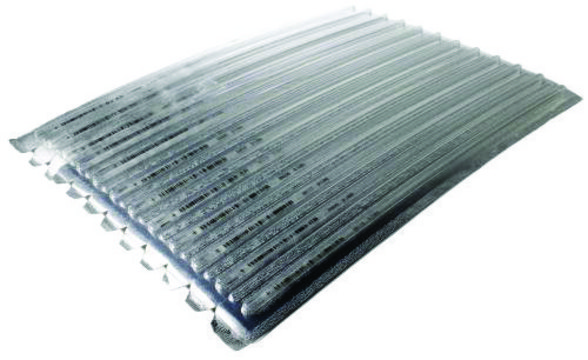

Immobiline® DryStrip gels (IPG strips) are used for isoelectric focusing (IEF), run as the first dimension of 2-D electrophoresis or as a separate application.
应用
Immobiline® DryStrip gels are available in fourteen overlapping pH ranges and five strip lengths (7, 11, 13, 18, and 24 cm) and represent the most comprehensive selection of narrow-, medium-, and wide-range IPG strips available. The five narrow pH range (1 pH unit), 24-cm IPG strips deliver the highest resolution and Protein loading capacity available, which results in well separated spots with high Protein content after the second-dimension separation.
The pH 3–11 NL strip covers most Proteins found in prokaryotic and eukaryotic cells while the narrow-range strips can be used when higher resolution is required. The pH gradients at the extreme ends of the pH scale are nonlinear to distribute the Proteins evenly over the gel length to obtain maximal resolution.
Immobiline® DryStrip gels are rehydrated with a matching IPG Buffer prior to use. Samples can be included directly in the rehydration solution for efficient loading of dilute samples or for loading larger amounts of Protein. Samples can also be loaded after rehydration. The first-dimension separation is carried out using Ettan™ IPGphor 3 IEF system or Multiphor II flatbed system.
The pH 3–11 NL strip covers most Proteins found in prokaryotic and eukaryotic cells while the narrow-range strips can be used when higher resolution is required. The pH gradients at the extreme ends of the pH scale are nonlinear to distribute the Proteins evenly over the gel length to obtain maximal resolution.
Immobiline® DryStrip gels are rehydrated with a matching IPG Buffer prior to use. Samples can be included directly in the rehydration solution for efficient loading of dilute samples or for loading larger amounts of Protein. Samples can also be loaded after rehydration. The first-dimension separation is carried out using Ettan™ IPGphor 3 IEF system or Multiphor II flatbed system.
特点和优势
- Maximize resolution, loading capacity, and reproducibility of first-dimension isoelectric focusing (IEF).
- Choose from a comprehensive range of overlapping Immobiline® DryStrip gels that cover narrow (1 pH unit), medium (3–5 pH units), and broad (8 pH units) pH ranges.
- Select the broad pH 3–11 NL gradient Immobiline® DryStrip gel for fast and efficient screening to gain a broad overview of total Protein distribution.
- For more detailed studies or when using greater Protein loads, choose from four new overlapping strips covering the pH 3 to 11 range.
- Higher resolution can be obtained using narrow-range (1 pH unit) Immobiline® DryStrip gels.
- Use matching IPG buffers for optimized running conditions.
- Use IPG strips directly after reswelling without further manipulation.
- Barcoded strips for convenient sample and batch tracking.
储存及稳定性
Please be aware this product may be shipped 90 days before the expiration date. For more information on the batch specific expiration date, please contact technical service.
分析说明
To view the Certificate of Analysis for this product, please visit www.cytiva.com.
法律信息
Ettan is a trademark of Cytiva
Immobiline is a registered trademark of Cytiva
WGK
WGK 2
法规信息
新产品
实验方案
2-D Clean-Up Kit from Cytiva is designed to prepare samples that would otherwise produce poor 2-D results.
This page describes how to apply equilibrated Immobiline® DryStrip gels on the ExcelGel SDS gels.
This protocol shows how to prepare the Immobiline® DryStrip Kit and electrodes strips.
This page shows how to apply higher sample volumes and protein amounts with paper bridges in isoelectric focusing with Cytiva products
