主页气相色谱分析(GC)鱼油胶囊和养殖鲑鱼中ω-3脂肪酸的气相色谱分析

鱼油胶囊和养殖鲑鱼中ω-3脂肪酸的气相色谱分析

Katherine K. Stenerson, Principal Scientist; Michael R. Halpenny, R&D Technician; Leonard M. Sidisky, R&D Manager; and Michael D. Buchanan, Product Manager,

Reporter US Volume 31.2

ω-3脂肪酸的摄取对健康的益处是多方面的1。在人体生理学中最重要的变异体似乎是:

  • C18:3n3,α-亚麻酸 (ALA)
  • C20:5n3, 二十碳五烯酸 (EPA)
  • C22:6n3, 二十二碳六烯酸 (DHA)

本文旨在鉴定两种不同来源鱼油中的ω-3脂肪酸。每种来源都只处理了单个样本,因此本文中这些不同来源之间的谱图比较不可视为定论。

实验

本文分析的样品如下:

  • 当地购买的鱼油胶囊,标明含有 EPA、DHA 和“其他”ω-3。
  • 大西洋鲑鱼片(农场养殖),冷冻和真空包装。

如 AOAC 方法 991.392中所述,制备鱼油胶囊以依次进行碱水解和甲基化的分析。在整个提取过程中用氮气覆盖混合物以防止多不饱和脂肪酸的氧化。鲑鱼样品依照AOCS官方方法 Ce 1k-093进行酸消化、碱水解和甲基化。在提取之前,将二丁基羟基甲苯(BHT)作为抗氧化剂添加到鲑鱼样品中。分析前,两种方法都使用甲基化操作程序将脂肪酸转化为脂肪酸甲酯 (FAME)。在进行气相色谱(GC)分析之前,将所有提取物浓缩至1 mL。

使用两种选择性略有不同的毛细管气相色谱柱进行分析,条件依照 AOAC 991.39 和 AOCS Ce 1i-07 方法2,4。这是可行的,因为两种方法共享相同的一组运行条件。将保留时间与标准进行比对以鉴定谱峰,数据已在之前发布5

结果和讨论

鱼油胶囊包装上标明的鱼源有沙丁鱼和凤尾鱼。根据这些鱼油公开的脂肪酸组成数据,预计FAME中含量最丰富的是C16:0和C20:5n3 (EPA),其次是C16:1、C18:1和C22:6n3(DHA)6。鱼油胶囊提取物的色谱图见 图1,符合预期模式。检测到的C14:0谱峰来自鱼油的沙丁鱼部分,这种脂肪酸在凤尾鱼油中的含量要低得多。

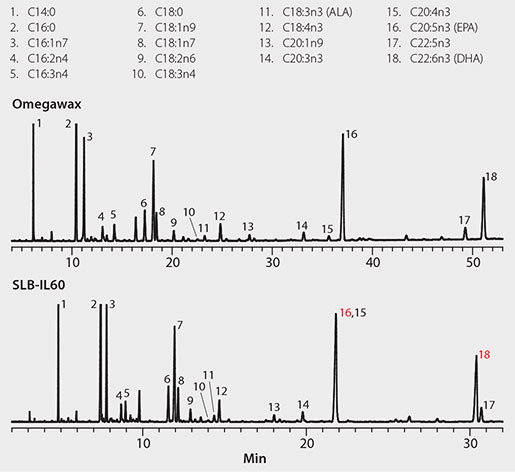

鱼油胶囊

图 1.鱼油胶囊

GC条件

  • 色谱柱:Omegawax®,30 m x 0.25 mm 内径,0.25 µm(产品编号24136) SLB®- IL60,30 m x 0.25 mm 内径,0.20 µm(产品编号29505-U);
  • 温箱:170 °C, 1 °C/min to 225 °C;
  • 进样温度:250 °C;
  • 检测器:FID,260 °C;载气:氦气,1.2 mL/min;
  • 进样体积:1 µL,100:1 分流;
  • 衬管:4 mm 内径,分流/不分流型,羊毛填充单锥形FocusLiner™设计

图2显示了农场养殖大西洋鲑的色谱图。公开的鲑鱼油脂肪酸组成表明C22:6n3(DHA)、C18:1和C20:5n3 (EPA)是最丰富的,其次是 C16:0、C16:1、C18:0、C20:1和 C22:1[6]。虽然检测到了所有列出的脂肪酸,但样品获得的谱图与此模式不符。具体来说,相对于C22:6n3(DHA)和C20:5n3(EPA),C22:6n3(DHA)和C20:5n3(EPA)的水平更高 ,这可能是鱼被投喂特定食物的结果。

这些分析物用两种色谱柱均观察到良好的峰形。由于两种色谱柱具有相似的选择性,洗脱顺序相当,但并不完全相同。使用 SLB-IL60:

  • 观察到C22:6n3 (DHA)在C22:5n3 之前洗脱
  • C20:4n3和C20:5n3 (EPA)发生部分共洗脱

这些突出体现了不同色谱柱之间的分析物-固定相机理的差异。最后,用SLB-IL60获得整体更快的洗脱(31 min对比52 min)。

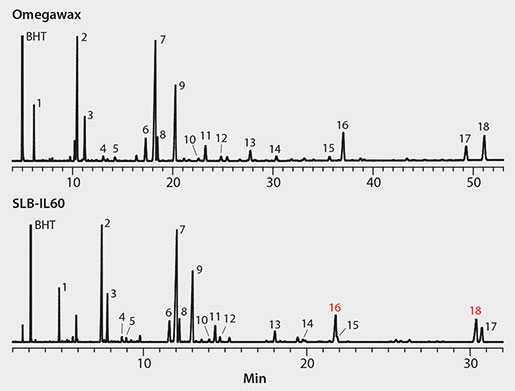

农场养殖大西洋鲑

图 2.农场养殖大西洋鲑

GC条件

谱峰ID和条件与 图1相同

结论

本文提供的数据表明两种不同来源的鱼油中可能存在不同的ω-3脂肪酸。每种来源都只处理了单个样本,因此本文中这些不同来源之间的谱图比较不可视为定论。两个选择性略有不同的GC色谱柱用于生成具有细微洗脱顺序变化的色谱图,为希望进行验证性分析的分析人员指明了这些阶段。

材料
产品编号产品名称说明价格
阿尔新蓝染色液TMS-010阿尔新蓝染色液
Alizarin-Red Staining Solution Alizarin red is a commonly used stain to identify calcium containing osteocytes in differentiated culture of both human and rodent mesenchymal stem cells (MSCs).TMS-008Alizarin-Red Staining SolutionAlizarin red is a commonly used stain to identify calcium containing osteocytes in differentiated culture of both human and rodent mesenchymal stem cells (MSCs).
Anti-H-CAM Antibody, clone F10-44-2 clone F10-44-2, Chemicon®, from mouseCBL154Anti-H-CAM Antibody, clone F10-44-2clone F10-44-2, Chemicon®, from mouse
Anti-H-CAM Antibody, clone F10-44-2 clone F10-44-2, Chemicon®, from mouseCBL154Anti-H-CAM Antibody, clone F10-44-2clone F10-44-2, Chemicon®, from mouse
Anti-Thy-1 Antibody, clone F15-42-1 clone F15-42-1, Chemicon®, from mouseCBL415Anti-Thy-1 Antibody, clone F15-42-1clone F15-42-1, Chemicon®, from mouse
Corning®细胞过滤网 pore size 70 μm, white, sterile, pkg of (individually wrapped), pack of 50 ea, Corning 431751CLS431751Corning®细胞过滤网pore size 70 μm, white, sterile, pkg of (individually wrapped), pack of 50 ea, Corning 431751
二甲基亚砜 Hybri-Max™, sterile-filtered, BioReagent, suitable for hybridoma, ≥99.7%D2650二甲基亚砜Hybri-Max, sterile-filtered, BioReagent, suitable for hybridoma, ≥99.7%
Fetal Bovine Serum US Origin, Mesenchymal Stem Cell Qualified FBS, sterile-filtered, suitable for stem cell cultureES-020-BFetal Bovine SerumUS Origin, Mesenchymal Stem Cell Qualified FBS, sterile-filtered, suitable for stem cell culture
hBFGF FGF-Basic, recombinant, expressed in E. coli, suitable for cell cultureF0291hBFGFFGF-Basic, recombinant, expressed in E. coli, suitable for cell culture
Human Adipose Mesenchymal Stem Cells Human Adipose Mesenchymal Stem Cells (MSCs) are isolated from human adipose tissue and are cryopreserved at P2 to ensure optimal phenotype and the highest viability and plating efficiency.SCC038Human Adipose Mesenchymal Stem CellsHuman Adipose Mesenchymal Stem Cells (MSCs) are isolated from human adipose tissue and are cryopreserved at P2 to ensure optimal phenotype and the highest viability and plating efficiency.
人间充质干细胞(骨髓) Human mesenchymal stem cells derived from bone marrow that have a capacity for expansion in vitro while maintaining their potential for differentiation to multiple lineages including adipocytes, osteoblasts and chondrocytes.SCC034人间充质干细胞(骨髓)Human mesenchymal stem cells derived from bone marrow that have a capacity for expansion in vitro while maintaining their potential for differentiation to multiple lineages including adipocytes, osteoblasts and chondrocytes.
人间充质-XF扩增培养基 Xeno-free mesenchymal stem cell media specially formulated for the rapid expansion of human mesenchymal stem cells isolated from a variety of sources, including adipose and bone marrow tissues.SCM045人间充质-XF扩增培养基Xeno-free mesenchymal stem cell media specially formulated for the rapid expansion of human mesenchymal stem cells isolated from a variety of sources, including adipose and bone marrow tissues.
人血浆纤连蛋白纯化蛋白 from human plasma, liquid, 1 mg/mL (100 MG pack size is lyophilized), purified protein, suitable for cell cultureFC010人血浆纤连蛋白纯化蛋白from human plasma, liquid, 1 mg/mL (100 MG pack size is lyophilized), purified protein, suitable for cell culture
间充质干细胞扩展培养基(1x) The Mesenchymal Stem Cell Expansion Medium (1x) has been optimized & validated for Stem cell culture. This medium is available in a 500mL format.SCM015间充质干细胞扩展培养基(1x)The Mesenchymal Stem Cell Expansion Medium (1x) has been optimized & validated for Stem cell culture. This medium is available in a 500mL format.
Mesenchymal Stem Cell Freezing Medium (1x) The Mesenchymal Stem Cell Freezing Medium (1x) has been optimized & validated for Stem cell culture. This medium is available in a 50ml format.SCM016Mesenchymal Stem Cell Freezing Medium (1x)The Mesenchymal Stem Cell Freezing Medium (1x) has been optimized & validated for Stem cell culture. This medium is available in a 50ml format.
油红O 溶液 0.5% in isopropanolO1391油红O 溶液0.5% in isopropanol
OsteoMAX-XF分化培养基 Defined Xeno-Free osteogenesis differentiation medium that is specially formulated to readily differentiate human mesenchymal stem cells (MSCs) into mature osteocytes as assessed by alizarin red & alkaline phosphatase staining.SCM121OsteoMAX-XF分化培养基Defined Xeno-Free osteogenesis differentiation medium that is specially formulated to readily differentiate human mesenchymal stem cells (MSCs) into mature osteocytes as assessed by alizarin red & alkaline phosphatase staining.
PLTGold® Human Platelet Lysate Heparin-free Human Platelet Lysate (hPL) for Mesenchymal Stem Cell Culture. 100ml.SCM151PLTGold® Human Platelet LysateHeparin-free Human Platelet Lysate (hPL) for Mesenchymal Stem Cell Culture. 100ml.
PLTGold® Human Platelet Lysate Heparin-free Human Platelet Lysate (hPL) for Mesenchymal Stem Cell Culture. 500ml.SCM152PLTGold® Human Platelet LysateHeparin-free Human Platelet Lysate (hPL) for Mesenchymal Stem Cell Culture. 500ml.
PLTMax人血小板裂解物 PLTMax Human Platelet Lysate is a growth factor rich supplement that is a superior alternative to fetal bovine serum (FBS) for human mesenchymal stem cell (MSC) culture. 100ml.SCM141PLTMax人血小板裂解物PLTMax Human Platelet Lysate is a growth factor rich supplement that is a superior alternative to fetal bovine serum (FBS) for human mesenchymal stem cell (MSC) culture. 100ml.
产品列表
产品编号产品名称说明价格
TMS-010阿尔新蓝染色液
TMS-008Alizarin-Red Staining SolutionAlizarin red is a commonly used stain to identify calcium containing osteocytes in differentiated culture of both human and rodent mesenchymal stem cells (MSCs).
CBL154Anti-H-CAM Antibody, clone F10-44-2clone F10-44-2, Chemicon®, from mouse
CBL154Anti-H-CAM Antibody, clone F10-44-2clone F10-44-2, Chemicon®, from mouse
CBL415Anti-Thy-1 Antibody, clone F15-42-1clone F15-42-1, Chemicon®, from mouse
CLS431751Corning®细胞过滤网pore size 70 μm, white, sterile, pkg of (individually wrapped), pack of 50 ea, Corning 431751
D2650二甲基亚砜Hybri-Max, sterile-filtered, BioReagent, suitable for hybridoma, ≥99.7%
ES-020-BFetal Bovine SerumUS Origin, Mesenchymal Stem Cell Qualified FBS, sterile-filtered, suitable for stem cell culture
F0291hBFGFFGF-Basic, recombinant, expressed in E. coli, suitable for cell culture
SCC038Human Adipose Mesenchymal Stem CellsHuman Adipose Mesenchymal Stem Cells (MSCs) are isolated from human adipose tissue and are cryopreserved at P2 to ensure optimal phenotype and the highest viability and plating efficiency.
SCC034人间充质干细胞(骨髓)Human mesenchymal stem cells derived from bone marrow that have a capacity for expansion in vitro while maintaining their potential for differentiation to multiple lineages including adipocytes, osteoblasts and chondrocytes.
SCM045人间充质-XF扩增培养基Xeno-free mesenchymal stem cell media specially formulated for the rapid expansion of human mesenchymal stem cells isolated from a variety of sources, including adipose and bone marrow tissues.
FC010人血浆纤连蛋白纯化蛋白from human plasma, liquid, 1 mg/mL (100 MG pack size is lyophilized), purified protein, suitable for cell culture
SCM015间充质干细胞扩展培养基(1x)The Mesenchymal Stem Cell Expansion Medium (1x) has been optimized & validated for Stem cell culture. This medium is available in a 500mL format.
SCM016Mesenchymal Stem Cell Freezing Medium (1x)The Mesenchymal Stem Cell Freezing Medium (1x) has been optimized & validated for Stem cell culture. This medium is available in a 50ml format.
O1391油红O 溶液0.5% in isopropanol
SCM121OsteoMAX-XF分化培养基Defined Xeno-Free osteogenesis differentiation medium that is specially formulated to readily differentiate human mesenchymal stem cells (MSCs) into mature osteocytes as assessed by alizarin red & alkaline phosphatase staining.
SCM151PLTGold® Human Platelet LysateHeparin-free Human Platelet Lysate (hPL) for Mesenchymal Stem Cell Culture. 100ml.
SCM152PLTGold® Human Platelet LysateHeparin-free Human Platelet Lysate (hPL) for Mesenchymal Stem Cell Culture. 500ml.
SCM141PLTMax人血小板裂解物PLTMax Human Platelet Lysate is a growth factor rich supplement that is a superior alternative to fetal bovine serum (FBS) for human mesenchymal stem cell (MSC) culture. 100ml.

参考文献

1.
Kris-Etherton PM, Harris WS, Appel LJ. 2002. Fish Consumption, Fish Oil, Omega-3 Fatty Acids, and Cardiovascular Disease. Circulation. 106(21):2747-2757. https://doi.org/10.1161/01.cir.0000038493.65177.94
2.
1995. AOAC Official Method 991.39. [Internet]. Fatty Acids in Encapsulated Fish Oils and Fish Oil Methyl and Ethyl Esters: AOAC International. Available from: https://wenku.baidu.com/view/eec98d47915f804d2b16c17e?from=search
3.
Clapper GM. 2009. AOCS Official Method Ce 1k-09 Direct Methylation of Lipids in Foods for the Determination of Total Fat, Saturated, cis-Monounsaturated, cis-Polyunsaturated and trans Fatty Acids by Gas Chromatography” . [Internet]. Available from: https://www.aafco.org/Portals/0/SiteContent/Regulatory/Committees/Lab-Methods-and-Services/Methods/fat_analysis_aocs.pdf
4.
AOCS Official Method Ce 1i-07. [Internet]. Determination of Saturated, cis-Monounsaturated, and cis-Polyunsaturated Fatty Acids in Marine and Other Oils Containing Long Chain Polyunsaturated Fatty Acids (PUFAs) by Capillary GLC: AOCS Official Methods and Recommended Practices..
5.
Stenerson K, Halpenny M, Sidisky L, Buchanan M. 2013. Ionic Liquid GC Column Option for the Analysis of Omega 3 and Omega 6 Fatty Acids. [Internet]. Supelco Reporter 31.1 (February 2013), p. 10..
6.
Firestone (ed.), D. 2006. Physical and Chemical Characteristics of Oils, Fats, and Waxes AOCS Press,. Washington, D.C.: US FDA.
