923567

Sigma-Aldrich

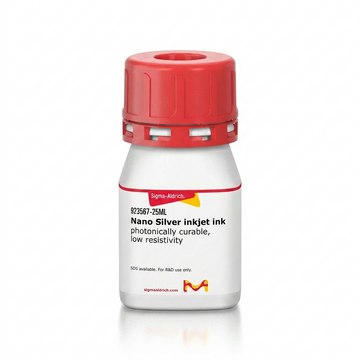

Nano Silver inkjet ink

photonically curable, low resistivity

Synonym(s):

Ag NP-based ink, Silver (Ag) Nanoparticle Ink, Silver nano ink, Smart′Ink S-CS01520

Sign Into View Organizational & Contract Pricing
All Photos(1)

About This Item

Empirical Formula (Hill Notation):
Ag
Molecular Weight:
107.87
UNSPSC Code:
12352103
NACRES:
NA.23

Quality Level

100

form

liquid

composition

alcohol / glycol mixture (solvent)

concentration

20 wt. % Ag
20 wt. %±1% (Silver content)

resistivity

5-10 μΩ-cm, after curing by photonic curing for less than 100ms, 3.2 - 6.3 Nb bulk silver
 5.4 μΩ-cm, after curing in furnace at 200° C for 5 minutes, 3.4 Nb bulk silver
 5.8 μΩ-cm, after curing in furnace at 180° C for 5 minutes, 3.6 Nb bulk silver
 6-12 μΩ-cm, after curing by NIR for a few seconds, 3.8 - 7.5 Nb bulk silver
 6.6 μΩ-cm, after curing in furnace at 150° C for 5 minutes, 4.1 Nb bulk silver

sheet resistance

13.5 m Ω/sq, 25 mum after curing at 200 Celsius for 5 min on glass
 16.5 m Ω/sq, 25 mum after curing at 150 Celsius for 5 min on glass

color

brown, Brown to Very Dark Brown and Faint Grey to Very Dark Grey and Black

surface tension

24 mN/m±3 mN/m

viscosity

12 mPa.s±3%(20 °C) (@100/s)

density

1.1 g/cm3

storage temp.

2-8°C

Related Categories

Application

Nanosilver inkjet ink finds use in the development of emerging energy technologies such as printed solar cells, energy storage devices, and printed heaters. The ink enables the deposition of conductive layers and electrodes required for efficient energy generation, storage, and management. It is also recommended for IoT applications including antennas (HF, UHF) and sensors, OPV and OLED grids, electrodes, touchscreen bezel busbars.
This Smart′Ink S-CS01520 conductive silver ink is particularly well suited for applications requiring high conductivity and high resolution. This ink, based on nano silver particles, is perfectly suited to design conductive traces on flexible substrates. It is also recommended for IoT applications including antennas (HF, UHF) and sensors, OPV and OLED grids, electrodes, touchscreen bezel busbars.

This ink has been developed to allow photonical curing to enable high throughput printing.

Compatible Printing Method: inkjet printing
Compatible Print heads: RICOH (MH5420), XAAR (1003 GS6, 128), KONIKA MINOLTA (KM512SHx, KM1024iMHE, KM1024LHB), FUJIFILM (Dimatix DMP series cartridge)
Compatible substrates: PET (Melinex 406, Melinex 339, Melines 520, Arcophane TCA, Arcophane STS, Folex BG-71), PEN (Teonex), Kapton® , Ceramic
Recommended surface treatment for substrates:
  • Temperature stabilization
  • Argon plasma treatment

Features and Benefits

  • Improved conductivity
  • Superior resolution (increased with substrate surface treatment)
  • Good bending resistance, smooth surface
  • Shiny coating, mirror effect
  • Optimized nano-particle content
  • Curing process compatibility: photonic, NIR, low vacuum oven, thermal curing
  • Cleaning solution: C-FS21511
  • Non-toxic (No CMR ink)

Legal Information

Product of Genes′Ink
Kapton is a registered trademark of E. I. du Pont de Nemours and Company

related product

Product No.
Description
Pricing

793493

Methylammonium iodide, 98%

806048

Formamidinium iodide

806498

Methylammonium bromide

806390

Methylammonium iodide

900181

Poly(3,4-ethylenedioxythiophene)-poly(styrenesulfonate), high-conductivity grade

900168

Lead(II) iodide, 99.999% trace metals basis, perovskite grade

900906

Solvene®300/P300

901437

Formamidinium bromide, ≥99%, anhydrous

901436

Formamidinium iodide, ≥99%, anhydrous

901435

Methylammonium bromide, ≥99%, anhydrous

901434

Methylammonium iodide, ≥99%, anhydrous

906336

PBDB-T-2F

908509

Y6

915777

1-Ethyl-3-methylimidazolium tetracyanoborate Solarpur®

915181

Cesium bromide, AnhydroBeads™, 99.999% trace metals basis, (Perovskite grade)

914819

Cesium iodide, AnhydroBeads™, 99.999% trace metals basis, (Perovskite grade)

913804

Tin(II) iodide, AnhydroBeads™, 99.99% trace metals basis, (Perovskite grade)

915696

Lead(II) bromide, Anhydrobeads™, 99.999% trace metals basis, (perovskite grade)

Signal Word

Danger

Hazard Statements

H226,H315,H318,H410

Hazard Classifications

Aquatic Acute 1 - Aquatic Chronic 1 - Eye Dam. 1 - Flam. Liq. 3 - Skin Irrit. 2

Storage Class Code

3 - Flammable liquids

WGK

WGK 3

Flash Point(F)

140.0 °F

Flash Point(C)

60 °C
