Reaction chamber chip - various volume chambers
Fluidic 620, COC
Sign Into View Organizational & Contract Pricing
All Photos(3)
Synonym(s):
Microfluidic chip
NACRES:
NA.23
Recommended Products
description
Microfludic chip x1
Application
Chamber chips come in the format of a microscopy slide (75.5 mm x 25.5 mm x 1.5 mm) and are equipped with Mini Luer interfaces. Their key microfluidic elements are reaction chambers of various volumes. Chamber chips are the perfect tool to facilitate reactions, such as amplification of a targeted DNA during qPCR, or to extract target molecules out of a given sample in preparative quantities. These chips can, for example, be used as nucleic acid extraction devices via magnetic beads simply via applying beads and sample and by using an external magnet to hold the beads in place. These procedures can be done completely manually with a pipette – besides the magnet no additional equipment is necessary – or semi-automated with normal peristaltic pumps found in most life science labs.
Reaction chamber chip - various volume chambers, Fluidic 620, COC is made of COC (Cyclic olefin copolymer). This straight channel chip features a variety of channels within one chip with the same channel dimensions besides the channel depth. The varying channel depth and the resulting different channel volumes allow for direct comparison of the channel depth influence on the assay and the measurement. The chip is the perfect tool to help choosing the right channel dimensions in the design process of integrated microfluidic devices.
Chip Properties:
Reaction chamber chip - various volume chambers, Fluidic 620, COC is made of COC (Cyclic olefin copolymer). This straight channel chip features a variety of channels within one chip with the same channel dimensions besides the channel depth. The varying channel depth and the resulting different channel volumes allow for direct comparison of the channel depth influence on the assay and the measurement. The chip is the perfect tool to help choosing the right channel dimensions in the design process of integrated microfluidic devices.
Chip Properties:
- Mini Luer Interface
- 16 various volume chambers
- Material: Cyclic olefin copolymer (COC)

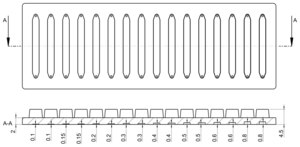

- Chamber Dimensions: 2mm(width) x various depths (100-800μm) x 18mm (length)
- Chamber Volumes: 3.6μl, 5.4μl, 7.1μl, 10.6μl, 14.1μl, 17.6μl, 21μl, 27.7μl
