Lentivirus Platform: Optimizing Performance for De-Risked Production

De-Risking Lentiviral Vector Manufacturing with Optimized Upstream and Downstream Processes

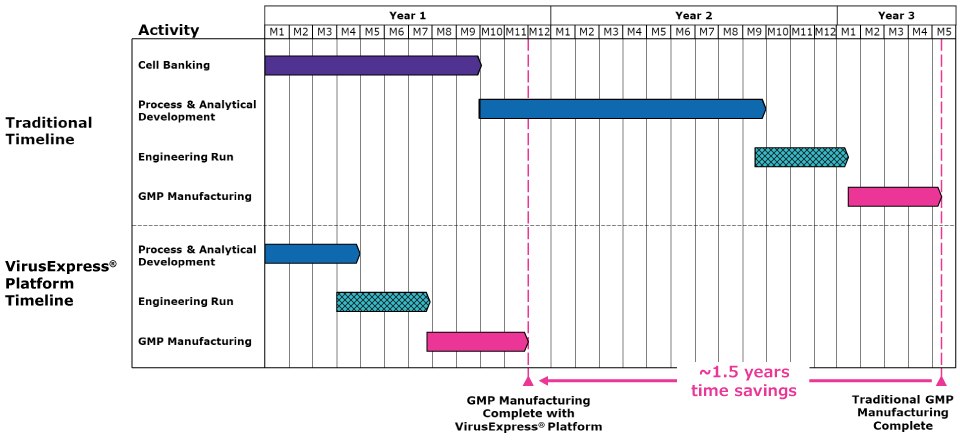

Through its optimized and defined processes, the streamlined platform accelerates development timelines (as seen in Figure 1) and delivers industry-leading titers and robust recovery yields. The comprehensive analytics provide performance and product quality data to ensure that manufacturing is robust.

The VirusExpress^® platform utilizes an optimized transfection-based solution for upstream production with VirusExpress^® 293T Lentiviral Production Cells, a well-characterized, GMP-banked HEK293T cell line and EX-CELL^® CD HEK293 Viral Vector Medium, a chemically-defined cell culture medium.

The platform`s upstream and downstream workflows were optimized using design of experiments (DoE) and supplementary studies.  The results of these studies include data on scalability and reproducibility outcomes.

Maximizing Lentiviral Vector Titers through Upstream Optimization

To identify the impact of transfection parameters on infectious titer compared to control conditions, two DoE studies were performed. In the first study, thirty-three different test conditions, as well as controls, were evaluated simultaneously. High, medium, and low values for five parameters were assessed. Using this approach, infectious titers as high as 6.3E+08 infections units (TU)/mL were achieved (Figure 2A).

To ensure optimal LV production, an experimental approach was used to identify the ideal levels of each plasmid added during transfection, given that multiple plasmids are utilized. A mixture design experiment was conducted, in which the levels of each plasmid were varied to ensure the defined amount of input DNA was consistent. In total, 30 test samples were evaluated during the experiment. (Figure 2B).

Using the identified optimal transfection conditions, testing was performed at larger scales to confirm the robustness of the upstream workflow.  The scale-up of LV vector production, based on DoE studies, is also included in the analysis.

Enriching Lentiviral Vector Recovery Through Downstream Optimization

To improve the downstream workflow and maximize recovery of LV vectors, the downstream optimization studies focused on anion exchange (AEX) chromatography, tangential flow filtration (TFF), final formulation, and sterile filtration unit operations, which had been identified as having the lowest step recoveries.

Step Elution Screening

To optimize NaCl concentration in the elution step and determine which condition enabled the highest infectious particle recovery, a step elution from 0.5 M NaCl to 2M NaCl was evaluated (Figure 3A). A total of 79% of the infectious titer was recovered from the combined step elution fractions; no measurable p24 was detected above the 1.5M salt concentration. Total HCP removal was >98% and there was no detectable DNA in the elution fractions (data not shown). Figure 3B shows the conductivity and UV absorbance for each salt concentration in the step elution and that no UV absorbance was detected at 2M NaCl elution. Based on these results, a single-step elution between 1 - 1.5M NaCl was selected, and further experiments refined the ideal elution conductivity between those concentrations. Optimization of the AEX step improved recovery to 88% with consistent performance while retaining the desired level of HCP removal.

Comparison of Membrane and Device Format on Recovery

TFF was optimized both for concentration and diafiltration. Several device types and formats, including hollowfiber and cassettes, were evaluated, as well as different membrane molecular weight cutoffs (MWCO) from 100 kDa to 750 kDa. The process was optimized for shear rate, duration, and critical flux. Another objective was to monitor the permeate for any breakthrough. No breakthrough was detected in the permeate (less than 1% or below assay limits of 1E5 viral particles/mL). A high recovery was achieved across MWCO and device type from 100 - 500 kDa (Figure 4). This result highlights the flexibility within the platform operating range and the high level of performance of TFF device type.

Developing a Final Formulation Buffer

For the formulation buffer optimization, a range of solutions were tested to understand the effect of pH, salt concentrations and stabilizers, hold times, and temperatures, which may occur during the final processing, storage of the LV vector. Figure 5 shows a range of varying buffer formulations and highlights two that provided a 2-fold improvement in recovery at different temperature and time periods.

The downstream workflow improvements were processed at larger scales to confirm consitent recovery and yield. The downstream production outcomes of LV vectors are included in the results, which can be found in our whitepaper: Optimizing and Scaling Lentiviral Vector Production

Analytical Assays to Support Lentiviral Vector Production Process

Accurate measurement of virus particles and impurities are essential during harvest and purification to monitor and assess viral vector critical quality attributes (CQAs), in addition to compendial and final product sterility and stability testing. As part of the lentivirus platform, a comprehensive toolbox of analytical methods was defined to characterize the product and assess productivity, yield, and purity.
